1- Assistant professor, Technical and Engineering Faculty, Science and Research Branch, Islamic Azad University, Tehran, Iran; samaei@srbiau.ac.ir
2- Assistant professor, Department of Marine industries, Science and Research Branch, Islamic Azad University, Tehran, Iran; m.asadian@srbiau.ac.ir
2- Assistant professor, Department of Marine industries, Science and Research Branch, Islamic Azad University, Tehran, Iran; m.asadian@srbiau.ac.ir
Abstract: (65 Views)

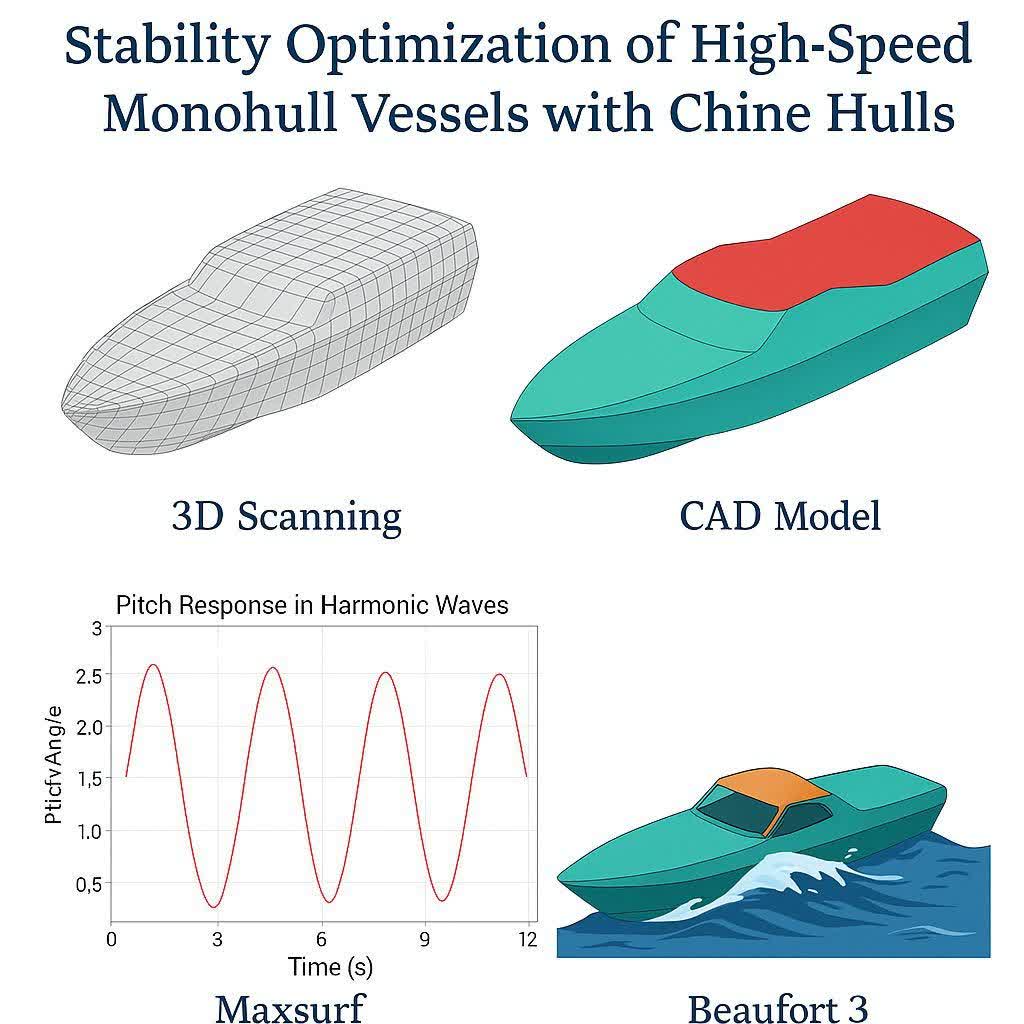

High-speed monohull vessels with chine hulls are widely used due to their simple design, but maintaining optimal performance at high speeds requires precise hull force analysis. This study utilizes 3D scanning to capture hull geometry, refining it in AutoCAD for efficiency. Hydrostatic and hydrodynamic assessments are conducted using Maxsurf, applying the Switkowski method.
The study examines vessel motion, crew comfort, and water ingress under different sea conditions. Results indicate that at a 5.4-degree trim, pitch motion intensifies in harmonic waves, yaw motion increases in beam waves, and pitch and heave motions are more pronounced in head waves. Water ingress becomes a concern at this trim in Beaufort 2 and 3, with MSI peaking at 12.5% in Beaufort 3. The lowest resistance occurs at 5.22 knots, but higher trims raise power demands. Manual trim adjustments using outboard engines and jacks effectively mitigate these effects.
The study examines vessel motion, crew comfort, and water ingress under different sea conditions. Results indicate that at a 5.4-degree trim, pitch motion intensifies in harmonic waves, yaw motion increases in beam waves, and pitch and heave motions are more pronounced in head waves. Water ingress becomes a concern at this trim in Beaufort 2 and 3, with MSI peaking at 12.5% in Beaufort 3. The lowest resistance occurs at 5.22 knots, but higher trims raise power demands. Manual trim adjustments using outboard engines and jacks effectively mitigate these effects.
Full-Text [PDF 2033 kb]
(15 Downloads)
Highlights
- A combined computational and experimental approach was used to optimize the hydrodynamic performance and stability of high-speed monohull vessels with chine hulls.
- 3D scanning, AutoCAD modeling, and Maxsurf simulation techniques were employed to precisely reconstruct hull geometry and evaluate performance under varying sea conditions.
- At a 5.4° trim angle, pitch motion increased by 33–48% in harmonic waves, while yaw and roll motions rose up to 75× and 83× respectively in beam seas, indicating significant stability concerns.
- Water ingress occurred at Beaufort levels 2 and 3 only at 5.4° trim, with Motion Sickness Incidence (MSI) reaching a peak of 12.5% under Beaufort 3, impacting crew comfort.
- Minimum resistance was observed at 5.22 knots, while trim angles above 5.4° enabled speeds beyond 60 knots but required significantly more power due to increased resistance.
- Manual trim adjustment mechanisms (e.g., jack-equipped outboard engines) effectively mitigated hydrodynamic inefficiencies, offering a practical solution for real-time stability control.
Audio file of the article abstract [MP3 1779 KB] (0 Download)
References
1. Brown, P. W. (1971). An experimental and theoretical study of planning surfaces with trim flaps. Davidson Laboratory Technical Report. [DOI:10.21236/AD0722393]
2. Savitsky, D., & Brown, P. W. (1975). Procedures for hydrodynamic evaluation of planning hulls in smooth and rough water. In Proceedings of Hampton Road Section, SNAME (November 1975).
3. Dawson, D., & Blount, D. (2002). Trim control. Professional Boat Builder, N75.
4. Bizzolara, S. (2003). Hydrodynamic analysis of interceptors with CDF methods. In Proceedings Fast 2003, 7th Int. Conference on Fast Sea Transportation (Vol. 3, pp. E.49-E.56).
5. Molini, A., & Brizzolara, S. (2005). Hydrodynamics of interceptors: A fundamental study. In Proceeding ICMRT2005, Int Conference on Maritime Research and Transportation, Ischia (Naples), Italy (Vol. 1).
6. Villa, D., & Brizzolara, S. (2009). A systematic CFD analysis of flaps/interceptor's hydrodynamic performance. In Fast 2009, Athens, October 2009.
7. Steen, S., Alterskjar, S. A., Velgaard, A., & Aasheim, I. (2009). Performance of a planning craft with mid-mounted interceptor. In Fast 2009, Greece, October 2009.
8. Hansvic, T. (2005). Resistance of planning catamaran with step (MSc thesis). Department of Marine Technology, NTNU, Trondheim, Norway.
9. Hansvic, T., & Steen, S. (2006). Use of interceptors and stepped hull to improve performance of high-speed planning catamaran. In Int. Conf. on High-Speed Craft-ACV's Wig'd and Hydrofoils, Royal Institute of Naval Architecture, 31 Oct.-1 Nov., 2006, London, UK. [DOI:10.3940/rina.hs.2006.18]
10. Fridman, G. (1969). Theory and practice of application of the interceptors on high-speed ships. In Fast 2007, Shanghai.
11. Chambliss, D. B., & Boyd, G. M., Jr. (1953). The planning characteristics of two V-shaped prismatic surfaces having angles of deadrise of 20° and 40°. NACA TN No.2876, January 1953.
12. Savirsky, D., & Neidlinger, J. W. (1954). Wetted area and center of pressure of planning surfaces at very low speed coefficients. Stevens Institute of Technology, Davidson Laboratory Report No.493, July 1954.
13. Savitsky, D., & Ross, E. (1952). Turbulence stimulation in the boundary layer of planning surfaces. Stevens Institute of Technology, Davidson Laboratory Report 44, August 1952.
14. Sottorf, W. (1932). Experiments with planning surfaces. NACA TM 661.
15. Locker, F. W. S., Jr. (1948). Tests of a flat bottom planning surface to determine the inception of planning. Navy Department, BuAer, Research Division Report No.1996, December 1948.
16. Sottorf, W. (1949). Systematic model researches on the stability limits of the DVI series of flow designs. NACA TM 1254, December 1949.
17. Davidson, K. S. M., & Locker, F. W. S., Jr. (1943). Some systematic model experiments on the porpoising characteristics of flying boat hulls. NACA ARR, June 1943.
18. Benson, J. M. (1942). The effect of deadrise upon the low-angle type of porpoising. NACA ARR, October 1942.
19. Parkinson, J. B., & Olson, R. E. (1944). Tank tests of an army OA-9 amphibian. NACA ARR, December 1944.
20. Locker, F. W. S., Jr. (1943). General porpoising tests of flying-boat hull models. NACA ARR, September 1943.
21. Karafitah, G., & Fisher, S. C. (1987). The effect of stern wedges on ship powering performance. Naval Engineers Journal, May 1987. [DOI:10.1111/j.1559-3584.1987.tb02113.x]
22. Wang, C. T. (1980). Wedge effect on planning hulls. J. Hydronautics, Vol. 14, No. 4, 1980. [DOI:10.2514/3.48182]
23. Cuasanelli, D. S., & Cave, W. L. (1993). Effect of stern flaps on powering performance of the FFG-7 class. Marine Technology, Vol. 30, No. 1, Jan. 1993. [DOI:10.5957/mt1.1993.30.1.39]
24. Cuasanelli, D. S., & Karafiath, G. (2001). Advances in stern flap design and application. In Fast 2001, Southampton, UK, Sep. 2001. [DOI:10.3940/rina.ft.2001.77]
25. Tsai, J. F., & Huang, J. K. (2003). Study on the effect of interceptor on high-speed craft. Journal of Society of Naval Architects and Marine Engineers, Roc, Vol. 22, No. 2, 2003, pp. 95-101.
26. Karimi, M. H. (2006). Hydrodynamic quality improvement techniques for high-speed planning crafts. In 7th Conference on Marine Industries, Tehran, Jan. 2006.
27. KSRI. (Year not provided). A radically new system for high-speed ship motion stabilization and speed increase based on automatically controlled interceptors, Report.2.
28. KSRI. (2004). A radically new system for high-speed ship motion stabilization and speed increase of oscillations of high-speed catamarans, Report.2004.
29. Karimi, M. H., Seif, M. S., & Abbaspoor, M. (2013). An experimental study of interceptor's effectiveness on hydrodynamic performance of high-speed planning crafts. Polish Maritime Research, 2(78), 2013, Vol. 20, pp. 21-29. DOI: 10.2478/pomr-2013-0013. [DOI:10.2478/pomr-2013-0013]
30. Schlichting, H. (1979). Boundary Layer Theory (7th ed.). McGraw-Hill Inc.
31. Interceptor Guide. (2011). Retrieved from http://www.humphree.com, March 15, 2011.
32. Day, A. H., & Cooper, C. (2011). An experimental study of interceptors for drag reduction on high-performance sailing yachts. Ocean Engineering, Vol. 38, pp. 983-994. [DOI:10.1016/j.oceaneng.2011.03.006]
33. ITTC Recommended 2002 (for HSC model test).
34. Teimouri, M. (2009). The Effect of Spray Rails and Transverse Steps on High-Speed Vessels (Master's thesis).
35. Seyed Reza Samaei, Madjid Ghodsi Hassanabad, Mohammad Asadian ghahfarrokhi, Mohammad Javad Ketabdari, "Numerical and experimental investigation of damage in environmentally-sensitive civil structures using modal strain energy (case study: LPG wharf)". Int. J. Environ. Sci. Technol. 18, 1939-1952 (2021). [DOI:10.1007/s13762-021-03321-2]
36. Samaei, S. R., Azarsina, F., & Ghahferokhi, M. A. (2016). Numerical simulation of floating pontoon breakwater with ANSYS AQWA software and validation of the results with laboratory data. Bulletin de la Société Royale des Sciences de Liège, 85, 1487-1499. [DOI:10.25518/0037-9565.6194]
37. Samaei, S. R., Asadian Ghahferokhi, M., & Azarsinai, F. (2022). Experimental study of two types of simple and step floating pontoon breakwater in regular waves. International Journal of Marine Science and Environment, 6(1), 8-16.
38. Samaei, S. R., & Ghodsi Hassanabad, M. (2022). Damage location and intensity detection in tripod jacket substructure of wind turbine using improved modal strain energy and genetic algorithm. Journal of Structural and Construction Engineering, 9(4), 182-202. doi: 10.22065/jsce.2021.294103.2488
39. Samaei, S. R., Ghodsi Hassanabad, M., Asadian Ghahfarrokhi, M., & Ketabdari, M. J. (2021). Numerical and experimental study to identify the location and severity of damage at the pier using the improved modal strain energy method-Case study: Pars Asaluyeh LPG export pier. Journal of Structural and Construction Engineering, 8(Special Issue 3), 162-179. doi: 10.22065/jsce.2020.246425.2225
40. Samaei, S. R., Ghodsi Hassanabad, M., Asadian Ghahfarrokhi, M., & Ketabdari, M. J. (2020). Structural health monitoring of offshore structures using a modified modal strain energy method (Case study: four-leg jacket substructure of an offshore wind turbine). Journal Of Marine Engineering, 16(32), 119-130. [DOI:10.29252/marineeng.16.32.119]
41. Samaei, S. R., Ghodsi Hassanabad, M., & Karimpor Zahraei, A. (2021). Identification of Location and Severity of Damages in the Offshore wind Turbine Tripod Platform by Improved Modal Strain Energy Method. Analysis of Structure and Earthquake, 18(3), 51-62.
42. Samaei, S. R., Ghodsi Hassanabad, M., Asadian Ghahfarrokhi, M., & Ketabdari, M. J. (2021). Investigation of location and severity of damage in four-legged offshore wind turbine stencil infrastructure by improved modal strain energy method. Analysis of Structure and Earthquake, 17(3), 79-90.
43. Seyed Reza Samaei, Farhood Azarsina, Mohammad Asadian. " Numerical simulation of floating pontoon breakwater with Ansys Aqua software and validation of results with laboratory data.", The third national conference on recent innovations in civil engineering, architecture and urban planning, 2016.
