Vertical Double-Flap Wave Energy Converter: A Novel Concept to Capture Power from Ocean Wave
Mehdi Behzad *1 , Mehdi Aziminia2 , Hamid Bab2 , Abuzar Abazari3
1- Professor Mechanical Engineering , School of Mechanical Engineering , Sharif University of Technology
2- Marine Engineering , School of Mechanical Engineering , Sharif University of Technology
3- Associate Professor Marine Engineering , Chabahar Maritime University, Chabahar, Iran
Abstract:   (14 Views)
Wave Energy Converters (WECs) are devices designed to extract electricity from ocean waves. This study introduces a modular flap-type WEC in which a single flap is divided into two vertical segments. This modification aims to investigate its impact on power production. A dynamic model is developed for this dual-flap system, and the governing equations of motion of the system are derived. To account for the interaction between the flaps and the waves, hydrodynamic coefficients and excitation moments are computed using a Boundary Element Method (BEM), which takes the influence of wave-induced forces on each flap into consideration. The rotational motions of both flaps are then analyzed, with an assumption of regular waves. Furthermore, the power generated by each flap is calculated, based on their respective rotational responses. This analysis is aimed to evaluate the efficiency of the dual-flap configuration in harnessing wave energy.
Keywords: Wave Energy Converter )WEC(, vertical double flap, power, water wave, Oscillating Wave Surge Converter (OWSC)
Full-Text [PDF 949 kb]   (4 Downloads)

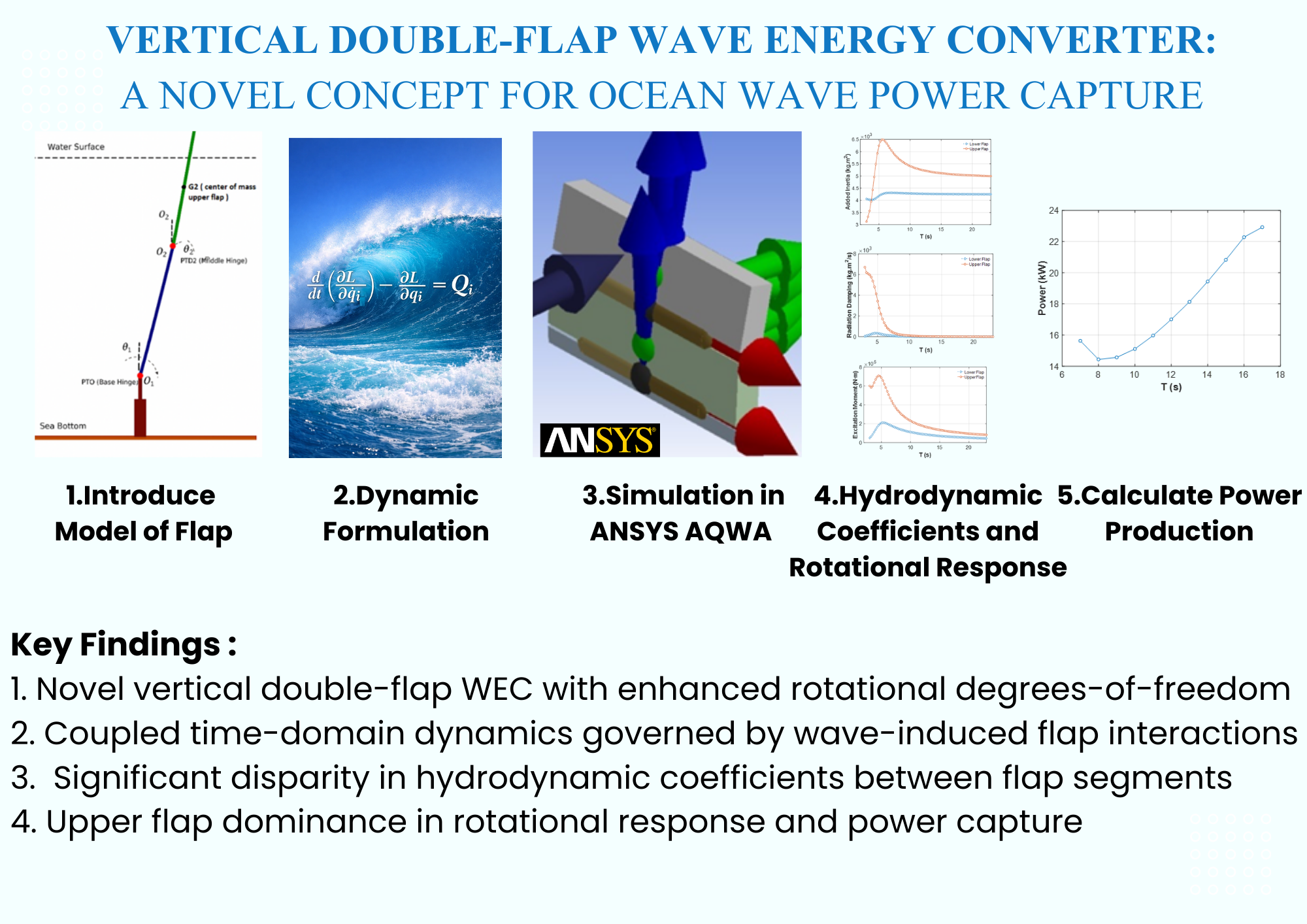

Highlights:
  1. A novel vertical double‑flap WEC is introduced for wave energy harvesting
  2. Coupled dynamic equations of the double‑flap WEC are derived using Lagrangian mechanics
  3. Wave‑induced hydrodynamic coefficients of the upper and lower flaps are comparatively analyzed
  4. The dynamic response and power production of the vertical double‑flap WEC are investigated
  5. The upper flap is shown to generate higher power due to its larger rotational motion

Type of Study: Research Paper | Subject: Offshore Hydrodynamic
Received: 2025/08/30 | Accepted: 2026/02/15
Audio file of the article abstract [MP3 1977 KB]  (1 Download)
References
1. IEA-OES, IEA-OES Annual Report, Technical Report, International Energy Agency - Ocean Energy Systems, 2007.
2. B. Czech and P. Bauer, "Wave energy converter concepts: Design challenges and classification," IEEE Industrial Electronics Magazine, vol. 6, no. 2, pp. 4-16, 2012. [DOI:10.1109/MIE.2012.2193290]
3. A. Shafieefar and B. Kamranzad, "A Review of Tidal and Wave Energy in Southern Waters of Iran," Journal of Marine Science, vol. 2, no. 3, pp. 21-27, 2011.
4. A. F. de O. Falcão, "Wave energy utilization: A review of the technologies," Renewable and Sustainable Energy Reviews, vol. 14, no. 3, pp. 899-918, 2010. [DOI:10.1016/j.rser.2009.11.003]
5. W. L. Cummins, The impulse-response function and ship motions, Aeronautics and Astronautics, presented at the Symposium on Ship Theory, Institute für Schiffbau der Universität Hamburg, Hamburg, Germany, Jan. 25-27, 1962.
6. W. Sheng, E. Tapoglou, X. Ma, C. J. Taylor, R. Dorrell, D. R. Parsons, and G. Aggidis, "Time-domain implementation and analyses of multi-motion modes of floating structures," Journal of Marine Science and Engineering, vol. 10, no. 5, p. 662, 2022. [DOI:10.3390/jmse10050662]
7. R. G. Dean and R. A. Dalrymple, Water Wave Mechanics for Engineers and Scientists. World Scientific, 1991. [DOI:10.1142/1232]
8. E. Renzi and F. Dias, "Relations for a periodic array of flap-type wave energy converters," Applied Ocean Research, vol. 39, pp. 31-39, 2012. [DOI:10.1016/j.apor.2012.09.002]
9. The Oyster: World's first nearshore wave energy converter, London Research International, 2013.
10. E. Arbabi and A. Abazari, "The effects of dimension, geometry and the modules' orientation in a modular flap arrangement on the extracted power density of surge oscillating flap wave energy converter," Journal of Marine Engineering, vol. 14, pp. 14-25, 2020. [DOI:10.61186/marineeng.19.41.14]
11. F. Kamal, A. Abazari, and R. Dorostkar, "The effect of flap dimension and wave angle on the dynamic response and extracted power of the hybrid system of offshore wind turbine and surge oscillating converter," Journal of Marine Engineering, vol. 20, no. 42, pp. 1-12, 2023. [DOI:10.61186/marineeng.20.42.1]
12. Q. Li, J. Mi, X. Li, S. Chen, B. Jiang, and L. Zuo, "A self-floating oscillating surge wave energy converter," Applied Energy, vol. 257, p. 114031, 2020. [DOI:10.1016/j.energy.2021.120668]
13. A. Abazari, & M.M Aziminia, (2022). Enhanced power extraction by splitting a single flap-type wave energy converter into a double configuration. Renewable Energy Research and Application (RERA), 4(2), 243-249. [DOI:10.22044/rera.2022.11846.1118]
14. M. Faizal, M. R. Ahmed, and Y.-H. Lee, "On utilizing the orbital motion in water waves to drive a Savonius rotor," Renewable Energy, vol. 34, no. 5, pp. 1084-1092, 2009. [DOI:10.1016/j.renene.2009.03.015]
15. Tan, Z. (2022). Investigation of the double pendulum small angle approximation model. World Scientific Research Journal, 8(11), 342-352. [DOI:10.6911/WSRJ.202211_8(11).0042]
16. Gomes, R. P. F., Lopes, M. F. P., Henriques, J. C. C., Gato, L. M. C., & Falcão, A. F. O. (2015). The dynamics and power extraction of bottom-hinged plate wave energy converters in regular and irregular waves. Ocean Engineering, 92, 922-934. [DOI:10.1016/j.oceaneng.2014.12.024]
17. J. Falnes, Ocean Waves and Oscillating Systems: Linear Interactions Including Wave-Energy Extraction. Cambridge, UK: Cambridge University Press, 2002. [DOI:10.1017/9781108674812] [PMID] []
18. Abazari, A., and Aziminia, M. M., "Water wave power extraction by a floating surge oscillating WEC comprising hinged vertical and horizontal flaps," Journal of Energy Management and Technology, 2022. [DOI:10.22109/jemt.2022.345654.1391]
19. He, C., Zhou, L., & Ma, X. (2023). Hydrodynamic response of a large-scale mariculture ship based on potential flow theory. Journal of Marine Science and Engineering, 11(10), 1995. [DOI:10.3390/jmse11101995]
20. Renzi, E., & Dias, F. (2013). Hydrodynamics of the oscillating wave surge converter in the open ocean. European Journal of Mechanics - B/Fluids, 39, 1-11. [DOI:10.1016/j.euromechflu.2013.01.007]
21. Raghavan, V., Lavidas, G., Metrikine, A., Mantadakis, N., & Loukogeorgaki, E. (2023). A comparative study on BEM solvers for wave energy converters. In Proceedings of the 2023 International Conference on Wave Energy (ICWE) (pp. 391-398). CRC Press. [DOI:10.1201/9781003360773-50]
22. M. Folley, T. W. T. Whittaker, and J. van't Hoff, "The design of small seabed-mounted bottom-hinged wave energy converters," in Proceedings of the 7th European Wave and Tidal Energy Conference (EWTEC), Porto, Portugal, 2007.
