1- Coastal Engineering Department Chabahar Maritime University, P.O. Box 99717-56499, Chabahar, Iran
2- Coastal Engineering Department Chabahar Maritime University, P.O. Box 99717-56499, Chabahar, Iran, E-mail: rezapour@cmu.ac.ir
3- Mechanical Engineering Department Chabahar Maritime University, P.O. Box 99717-56499, Chabahar, Iran, E-mail: amin.hosseini@cmu.ac.ir
4- Metocean Engineer, Van Oord, Rotterdam, Netherland
2- Coastal Engineering Department Chabahar Maritime University, P.O. Box 99717-56499, Chabahar, Iran, E-mail: rezapour@cmu.ac.ir
3- Mechanical Engineering Department Chabahar Maritime University, P.O. Box 99717-56499, Chabahar, Iran, E-mail: amin.hosseini@cmu.ac.ir
4- Metocean Engineer, Van Oord, Rotterdam, Netherland
Abstract: (40 Views)

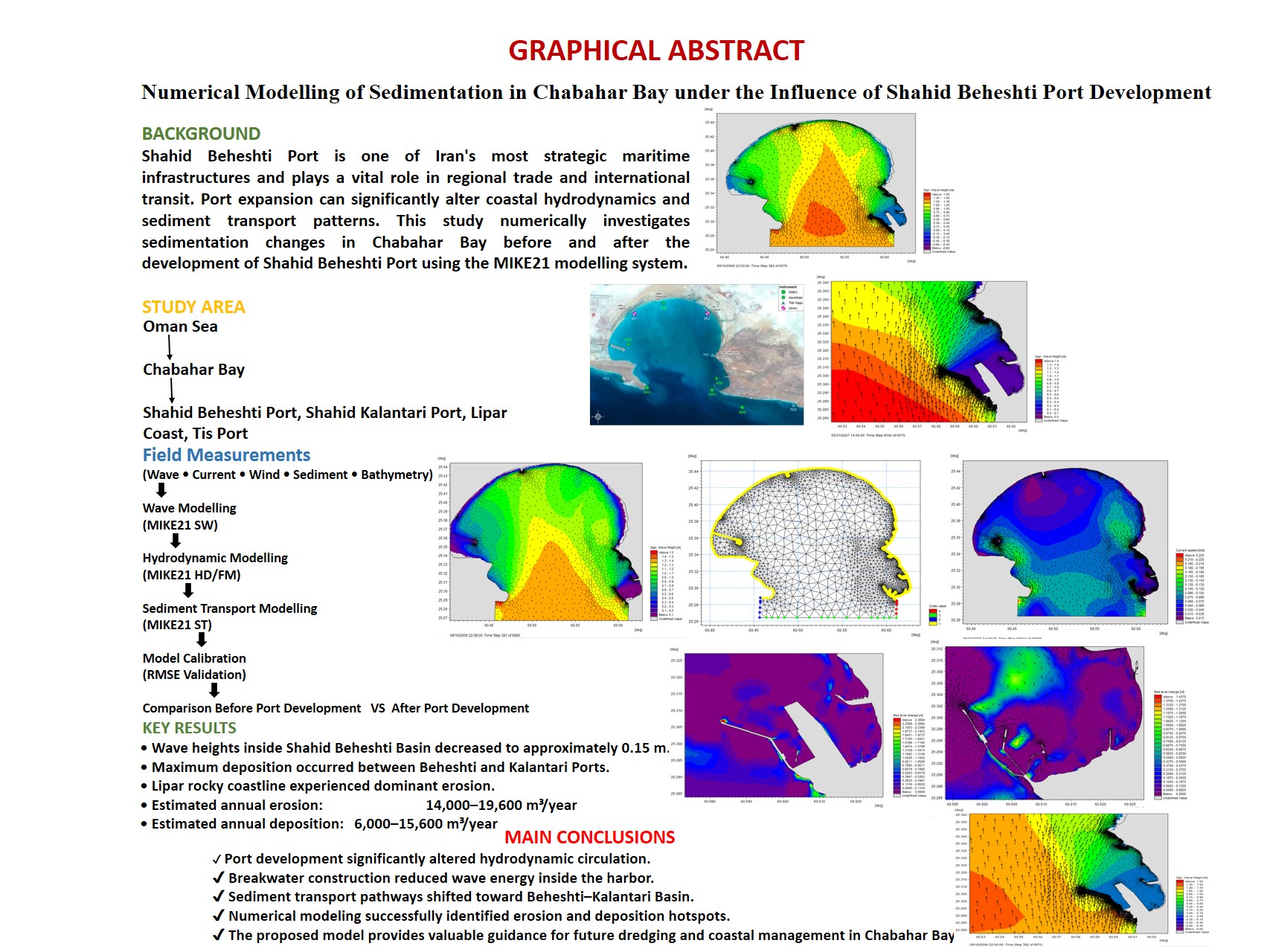

Shahid Beheshti Port stands as a critical maritime infrastructure in Iran, serving as a pivotal transit hub for goods destined for Central Asia. This research aims to elucidate the sedimentation dynamics within Chabahar Bay, both before and following the expansion of the Shahid Beheshti Port. The study employed various modules of the MIKE21 hydrodynamic modeling suite to achieve this objective. The modeling results, comparing pre- and post-development scenarios of Shahid Beheshti Port, reveal that sediments circumnavigate the breakwater before entering the area between the Beheshti breakwater and Kalantari Port. The region north of Kalantari Port, characterized by the rocky Lipar coast and seabed, predominantly experiences erosion, with occasional sedimentation events. The coastal stretch extending from Tis Port to the beach area exhibits a complex interplay of depositional and erosional processes. Erosion rates in this sector are substantial, ranging from approximately 14,000 to 19,600 cubic meters annually. A desalination plant situated along the western coastline acts as a significant sediment trap, with pronounced accumulation on its eastern flank. Conversely, the western side of this structure is subject to erosion due to local current patterns.
Full-Text [PDF 1318 kb]
(11 Downloads)
Highlights
A calibrated MIKE21 model successfully simulated wave, current, and sediment dynamics in Chabahar Bay.
Port development reduced wave energy, modified hydrodynamic circulation, and altered sediment transport pathways, increasing deposition between Shahid Beheshti and Shahid Kalantari Ports while identifying erosion-prone coastal zones.
The results provide a reliable tool for sustainable port development and coastal management.
A calibrated MIKE21 model successfully simulated wave, current, and sediment dynamics in Chabahar Bay.
Port development reduced wave energy, modified hydrodynamic circulation, and altered sediment transport pathways, increasing deposition between Shahid Beheshti and Shahid Kalantari Ports while identifying erosion-prone coastal zones.
The results provide a reliable tool for sustainable port development and coastal management.
Type of Study: Research Paper |
Subject:
Offshore Hydrodynamic
Received: 2024/10/25 | Accepted: 2026/07/15
Received: 2024/10/25 | Accepted: 2026/07/15
Audio file of the article abstract [MP3 2649 KB] (5 Download)
References
1. Wu, W., (2004), Depth-averaged two-dimensional numerical modeling of unsteady flow and nonuniform sediment transport in open channels, J Hydraul Eng, 130(10): p. 1013-1024. [DOI:10.1061/(ASCE)0733-9429(2004)130:10(1013)]
2. Panigrahi, J.K., Ananth, P.N. and Umesh, P.A., (2009), Coastal morphological modeling to assess the dynamics of Arklow Bank, Ireland, Int J Sediment Res, 24(3): p. 299-314. [DOI:10.1016/S1001-6279(10)60005-4]
3. Xie, D., Gao, S., Wang, Z. and Pan, C., (2013), Numerical modeling of tidal currents, sediment transport and morphological evolution in Hangzhou Bay, China, Int J Sediment Res, 28(3): p. 316-328. [DOI:10.1016/S1001-6279(13)60042-6]
4. Sravanthi, N., Ramakrishnan, R., Rajawat, A.S. and Narayana, A.C., (2015), Application of numerical model in suspended sediment transport studies along the Central Kerala west coast of India, Aquat Procedia, 4: p. 109-116. [DOI:10.1016/j.aqpro.2015.02.016]
5. Hendriyono, W., Wibowo, M., Al Hakim, B. and Istiyanto, D.C., (2015), Modeling of sediment transport affecting the coastline changes due to infrastructures in Batang, Central Java, Procedia Earth Planet Sci, 14: p. 166-178. [DOI:10.1016/j.proeps.2015.07.098]
6. Babu, M.T., Vethamony, P. and Desa, E., (2005), Modelling tide-driven currents and residual eddies in the Gulf of Kachchh and their seasonal variability: A marine environmental planning perspective, Ecol Model, 184(2-4): p. 299-312. [DOI:10.1016/j.ecolmodel.2004.10.013]
7. Zhang, C., Zheng, J.H., Wang, Y.G., Zhang, M.T., Jeng, D.S. and Zhang, J.S., (2011), A process-based model for sediment transport under various wave and current conditions, Int J Sediment Res, 26(4): p. 498-512. [DOI:10.1016/S1001-6279(12)60008-0]
8. Ganesh, R. and Gopaul, N., (2013), A predictive outlook of coastal erosion on a log-spiral bay (Trinidad) by wave and sediment transport modelling, J Coast Res, 65: p. 488-493. [DOI:10.2112/SI65-083.1]
9. DHI., MIKE 21 & MIKE 3 Flow Model FM.
10. Morianou, G.G., Kourgialas, N.N., Karatzas, G.P. and Nikolaidis, N.P., (2016), Hydraulic and sediment transport simulation of Koiliaris River using the MIKE 21C model, Procedia Eng, 162: p. 463-470. [DOI:10.1016/j.proeng.2016.11.089]
11. Nardini, A. and Pavan, S., (2012), What river morphology after restoration? The methodology VALURI, Int J River Basin Manag, 10(1): p. 29-47. [DOI:10.1080/15715124.2011.640637]
12. Gholami, Z., (2022), Evaluation of longshore sediment transport rate in Imam Khomeini Port using three samples of meta-heuristics algorithm, Hydrophysics, 7(2): p. 39-49.
13. Kirby, R., (2011), Minimising harbour siltation: Findings of PIANC Working Group 43, Ocean Dyn, 61(2): p. 233-244. [DOI:10.1007/s10236-010-0336-9]
14. Safaval, P.A., Neshaei, S.A., Heidarian, P., Khanmohammadi, M., Ghanbarpour, F., Azizi, Z., Behzadi, S. and Stefanakis, A., (2024), Studying the effect of Anzali port breakwaters on sedimentation in Anzali wetland using remote sensing, Environ Eng Res, 29(1). [DOI:10.4491/eer.2023.064]
15. Zeinali, S., Dehghani, M., Rastegar, M.A. and Mojarrad, M., (2017), Detecting shoreline changes in Chabahar Bay by processing satellite images, Sci Iran, 24(4): p. 1802-1809. [DOI:10.24200/sci.2017.4271]
16. Soltanpour, M. and Dibajnia, M., (2015), Field measurements and 3D numerical modeling of hydrodynamics in Chabahar Bay, Iran, Int J Marit Technol, 3: p. 49-60.
17. Kulkarni, R.R., (2013), Numerical modelling of coastal erosion using MIKE21. Master's thesis, Institutt for bygg, anlegg og transport. http://hdl.handle.net/11250/232599
18. Badru, G.S., Odunuga, S.S., Omojola, A.S. and Oladipo, E.O., (2022), Numerical modelling of sediment transport in southwest coast of Nigeria: Implications for sustainable management of coastal erosion in the Bight of Benin, J Afr Earth Sci, 187: p. 104466. [DOI:10.1016/j.jafrearsci.2022.104466]
19. Seenath, A., (2023), A new approach for handling complex morphologies in hybrid shoreline evolution models, Appl Ocean Res, 141: p. 103754. [DOI:10.1016/j.apor.2023.103754]
20. Wibowo, M., Khoirunnisa, H., Wijayanti, R., Istiyanto, D.C. and Widagdo, A.B., (2024), Sediment transport modelling: Effect of the coastal reservoirs [DOI:10.1061/(ASCE)0733-9429(2004)130:10(1013)]
